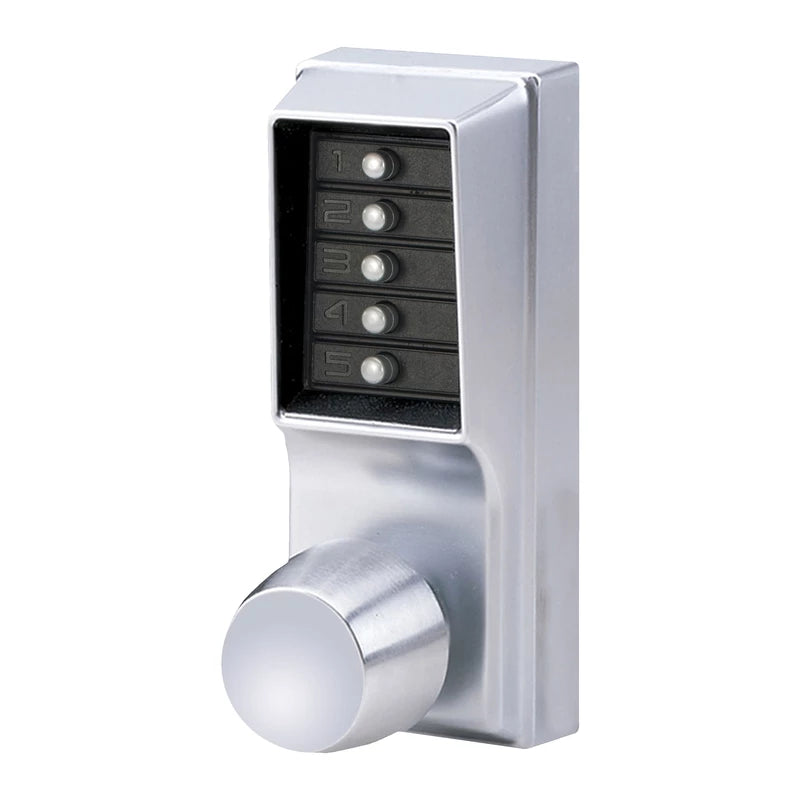

Dormakaba 1011-26D-41 Simplex Pushbutton Cylindrical Lock with Knob Combination Entry Only 1/2 in. throw 2-3/4 in. BS

Product Description

The DORMAKABA 1011-26D-41 Simplex 1000 Series provides exterior access by combination, while allowing free egress. The numeric keypad is vandal resistant with solid metal pushbuttons. This fully mechanical lock eliminates battery replacements. It features an easy-to-manage single access code for all users and is easily programmed via the keypad without removing it from the door.

• Numeric Keypad is vandal resistant with solid metal pushbuttons
• No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements
• Easy-to-manage single access code for all users

Product Highlights

The DORMAKABA Simplex lock provides a convenient way to control access between public and private areas. There are no keys or cards to manage, no computers to program, and combinations can be changed in seconds.

Product Information

Standard Information

• Brand: DORMAKABA
• Manufacturer Part Number: 1011-26D-41

Technical Specifications

• Locking Device: Cylindrical latch with 3-hour UL/ULC fire rating on A-labeled doors
• Operation Mode: Pushbutton Access
• Door Thickness: 1-3/8 in. to 2-1/4 in.
• Minimum Stile Recommended: 5 in.
• Fire Rating: 3 Hours
• Grade: Grade 1
• Installation: Commercial
• Handing: Field Reversible
• Std. Strike Type: ASA
• Lever/Knob Design Family: Bell Knob
• Latch Backset Dimension: 2-3/4"
• Lock Platform: Cylindrical Lock
• Keypad Type: Mechanical
• Series Name: Simplex
• Function: 1 - Cylindrical Lock, Combination Entry Only
• Access Function: Entry
• Brand: Dormakaba
• Finishes: US26 (625) Bright Chrome, US5 (609) Antique Brass, US26D (626) Satin Chrome, US3 (605) Bright Brass
• Lock Function: Combination Entry Function Only
• Usage: Heavy Duty
• Backset: 2-3/4"
• Latch: 1/2" throw - 1-1/8" x 2-1/4" face
• Strike: 4-7/8"
