Dorian Tool 73310101428 Cxa 71C Cut-off Tool Post Holder

Product Description

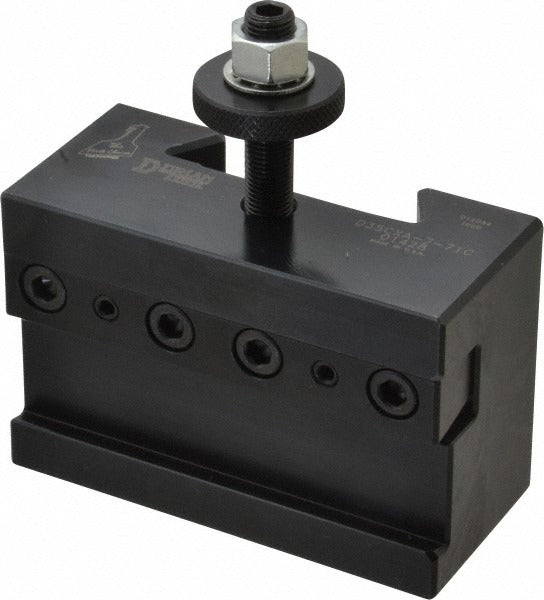

The DORIAN TOOL 73310101428 is a Series CXA carbide combination cut-off tool post holder designed for use on engine lathes with a swing range of 14 to 17 inches (350 to 430 mm). Holder number 71C accepts blades from the 26-2 through 26-6 range and accommodates blade sizes from 0.0630 to 0.2030 decimal inch (1.57 to 5.16 mm). The overall height is 2.25 inches and the overall length is 3.75 inches, with a centerline height of 1.6252 inches. This holder is installed by machinists and toolroom technicians requiring a rigid, repeatable cut-off setup on CXA-series quick-change tool posts.

This holder is suited for production and job-shop lathe environments where carbide combination cut-off tooling is required. It fits lathes with a swing in the 14 to 17 inch range and mates with standard CXA quick-change tool post systems. It does not include through-coolant capability, making it straightforward to set up in dry or flood-coolant applications where direct nozzle delivery is used. The 71C designation identifies it within the CXA series lineup for fast cross-referencing when ordering replacement or additional holders.

Key Features

• Series CXA quick-change tool post holder for 14 to 17 inch lathe swing
• Accepts blades 26-2 through 26-6 in sizes from 0.0630 to 0.2030 decimal inch
• Overall height of 2.25 inches with 3.75 inch overall length
• Centerline height of 1.6252 inches for precise tool alignment
• No through-coolant required - compatible with external flood or dry cutting setups
• Holder number 71C for direct identification within CXA series

Compatibility

Designed for use with CXA-series quick-change tool post systems on engine lathes with a swing of 14 to 17 inches (350 to 430 mm). Compatible with cut-off blades in the 26-2 through 26-6 range.

Installation Notes

Installation is performed by a machinist or toolroom technician familiar with quick-change tool post systems. Power down and bring the lathe spindle to a complete stop before mounting or adjusting any tool post holder. Ensure the tool post dovetail and holder dovetail are clean and free of chips before seating the holder. Verify centerline height alignment before taking a cut to maintain dimensional accuracy and blade integrity.
