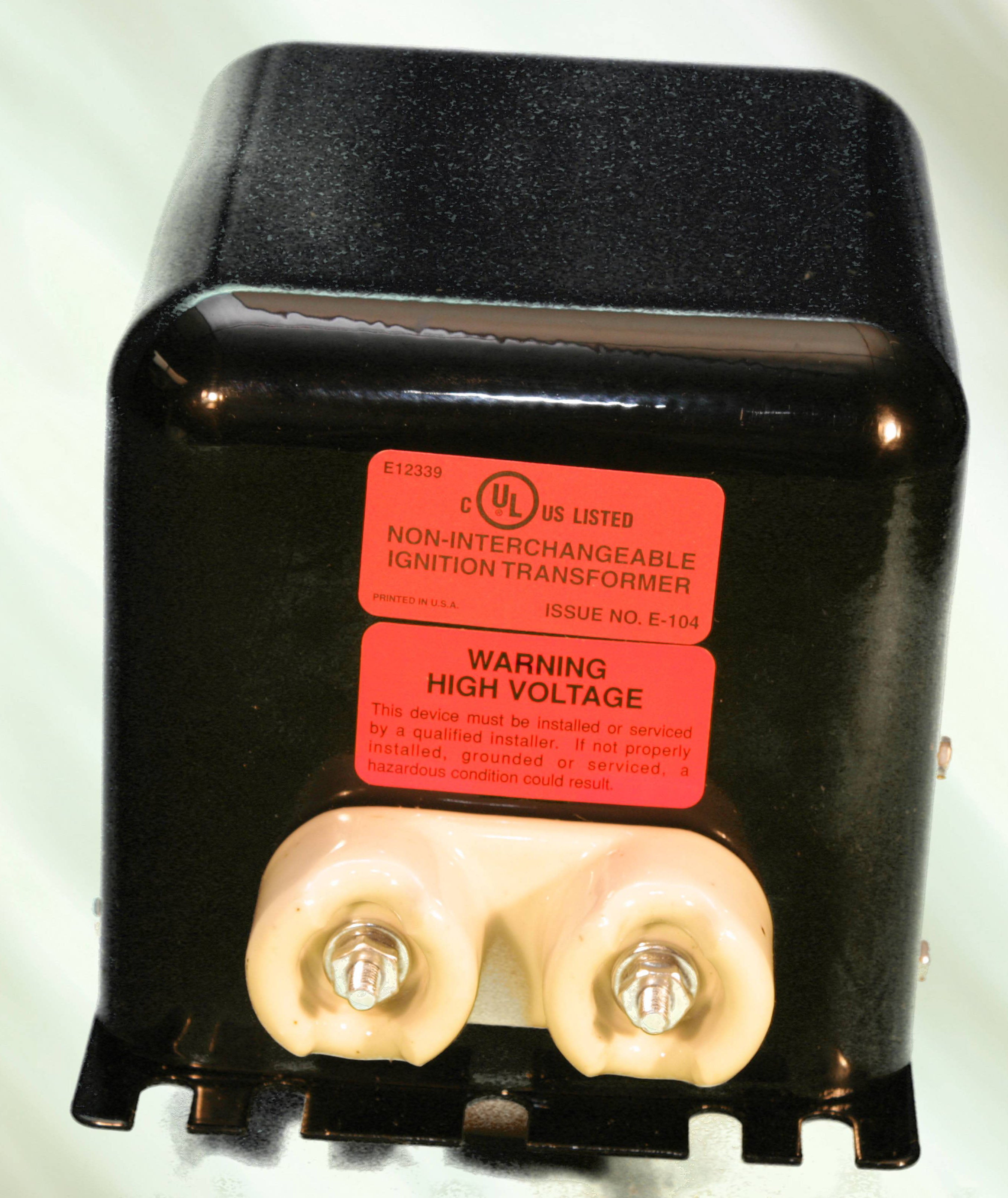

Dongan C10-LF3 Universal Ignition Transformer 240 VAC Primary 10000 VAC Secondary

Product Description

The Dongan C10-LF3 Ignition Transformer is a universal ignition transformer with a primary voltage of 240 VAC and a secondary voltage of 10000 VAC. It provides a power rating of 250 VA and operates at a frequency of 60 Hz. The transformer has a maximum output of 22 mA. It is built for a 100% duty cycle and meets NEMA 1 standards.

• Universal application
• Compact dimensions: 4.94 inches high, 7.63 inches wide, 4.69 inches deep
• CULus Listed for safety

Product Highlights

This ignition transformer is designed for efficient operation in various ignition systems. Its robust design ensures reliable performance in residential and commercial applications.

Product Information

Standard Information

• Brand: Dongan Electric
• UPC: 78249024055

Technical Specifications

• Dimensions: 4.94 inches H x 7.63 inches W x 4.69 inches D
• Duty Cycle: 100%
• Enclosure: NEMA 1
• Frequency Rating: 60 Hz
• Manufacturer Part Number: C10-LF3
• Maximum Amperage Rating: 22 mA
• Power Rating: 250 VA
• Secondary Voltage: 10000 VAC
• Standards/Approvals: cULus Listed
• Type: Universal
