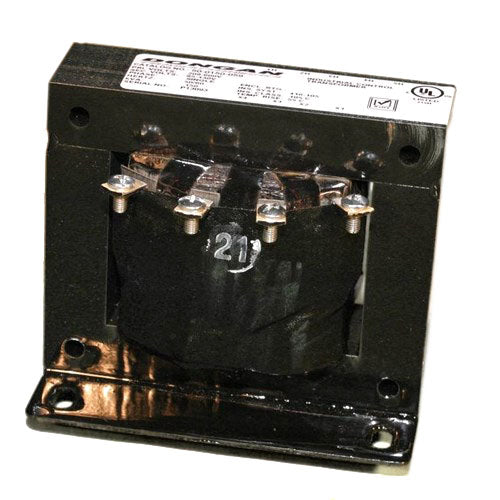

Dongan 50-1000-053 DON 1.0KVA I.C. 240X480-120V XFMR

Product Description

Dongan 50-1000-053 is a triple rated industrial control transformer designed for efficient voltage transformation. It is suitable for various electrical control applications. This transformer has a primary voltage of two hundred forty or four hundred eighty VAC and a secondary voltage of one hundred twenty VAC, providing a power rating of one thousand VA. The unit operates at a frequency of 50 to 60 Hz and supports single-phase connections.

• Designed for use in industrial control settings
• Open enclosure suitable for various environments
• Meets UL, cUL, CSA, and NEMA standards

Product Highlights

This model is built for durability with features such as screw terminals for easy installation. The transformer is equipped with copper windings and can handle maximum amperages of up to eight point three three A on the secondary side.

Product Information

Standard Information

• Manufacturer: Dongan Electric
• Model Number: 50-1000-053

Technical Specifications

• Connection Type: Screw
• Dimensions: seven point five in H x five point twenty five in W x four point thirty eight in D
• Enclosure: Open
• Frequency Rating: 50/60 Hz
• Insulation: 180 deg C
• Maximum Amperage Rating: 4.17/2.08/8.33 A
• Phase: 1
• Power Rating: 1000 VA
• Secondary Voltage: 120 VAC
• Series: 50 Series
• Temperature Rating: 115 deg C
• Standards/Approvals: UL E3210 Listed, cUL Listed, CSA LR560 Certified, NEMA ST-1 Rated, ANSI Approved, RoHS Compliant
