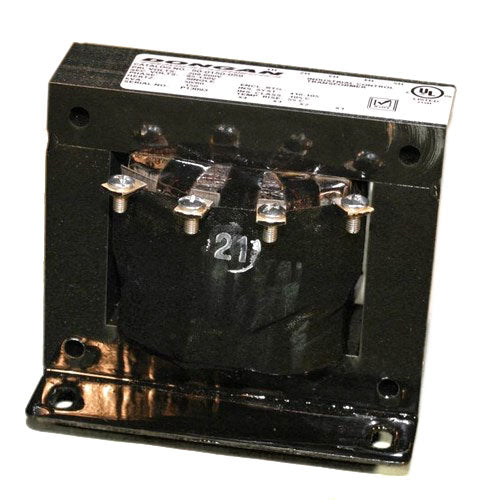

Dongan 50-0500-053 50 Series Triple Rated Industrial Control Transformer 500 VA 240X480-120V

Product Description

Dongan 50-0500-053 is an industrial control transformer rated for 500 VA. It operates on a primary voltage of 240/480 VAC and provides a secondary voltage of 120 VAC. This transformer is designed for various control panel applications within industrial settings.

• Power Rating: 500 VA
• Frequency: 50/60 Hz
• Connection Type: Screw terminals

Product Highlights

The Dongan 50 Series transformers provide reliable power solutions for industrial automation.

Product Information

Standard Information

• Manufacturer: Dongan Electric
• UPC: 78249050050

Technical Specifications

• Model Number: 50-0500-053
• Dimensions: 5.88 in H x 5.25 in W x 4.38 in D
• Phase: 1
• Type: Triple Rated
• Max Amperage: 2.08/1.04/4.17 A
• Insulation Class: 180 deg C
• Temperature Rise: 115 deg C
• Enclosure: Open
• Call for Availability: Yes
• Connection Type: Screw
• Voltage Type: 240/480 VAC Primary - 120 VAC Secondary
• Regulatory Approvals: UL Listed, NEMA Rated, RoHS Compliant
