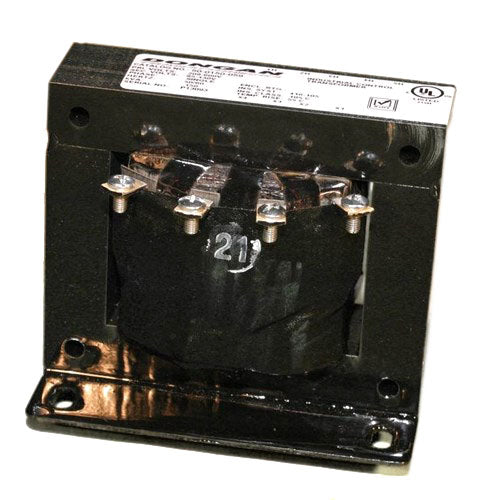

Dongan 50-0100-053 DON .100KVA I.C. 240X480-120V XFMR

Product Description

The Dongan Control Transformer with MPN 50-0100-053 is an Industrial Open Style Triple Rated unit designed for various control applications. It features a primary voltage of 240/480 VAC and a secondary voltage of 120 VAC, making it versatile for different setups.

• Power rating of 100 VA
• Frequency rating of 50/60 Hz
• Compact dimensions for easy installation

Product Highlights

This transformer is ideal for control panels and automation systems, ensuring reliable performance in demanding environments.

Product Information

Standard Information

• Manufacturer: Dongan Electric
• UPC: 78249050010

Technical Specifications

• Connection Type: Screw
• Dimensions: 2.81 inches H x 3 inches W x 3.38 inches D
• Frequency Rating: 50/60 Hz
• Insulation: 180 degrees C
• Maximum Amperage Rating: 0.42/0.21/0.83 A
• Phase: 1 ph
• Power Rating: 100 VA
• Secondary Voltage: 120 VAC
• Standards/Approvals: UL E3210 Listed, cUL Listed, CSA LR560 Certified, NEMA ST-1 Rated, ANSI Approved, RoHS Compliant
• Temperature Rating: 115 degrees C
• Type: Industrial Open Style Triple Rated
