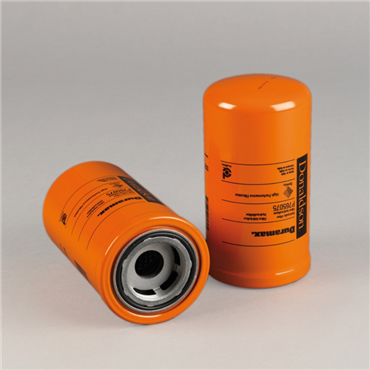

Donaldson P765075 Spin-On Fuel Filter

Product Description

The Donaldson P765075 is a spin-on fuel filter designed for efficient filtration in various applications.

• 3.82 inches outside diameter
• 2-16 UN thread size
• Spin-on style for easy replacement

Product Highlights

This fuel filter offers reliable protection for engines by trapping harmful particles and contaminants in the fuel.

Product Information

Standard Information

• Brand: Donaldson
• Part Number: 110048612

Technical Specifications

• Primary Application: DANA 4209440
• O.D.: 3.82 inches (97 mm)
• Length: 7.13 inches (181 mm)
• Thread Size: 2-16 UN
• Outer Diameter: 3.82 inches (97 mm)
• Media Type: Synthetic
• Gasket I.D.: 2.48 inches (63.1 mm)
• Gasket O.D.: 2.76 inches (70.15 mm)
• Efficiency Beta 1000: 11 micron
• Efficiency Beta 200: 9 micron
• Bypass Valve: Yes
• Bypass Valve Setting LR: 41 psi (2.8 bar)
• Weight: 2.4 LB
• EAN or UPC: 742330182369
