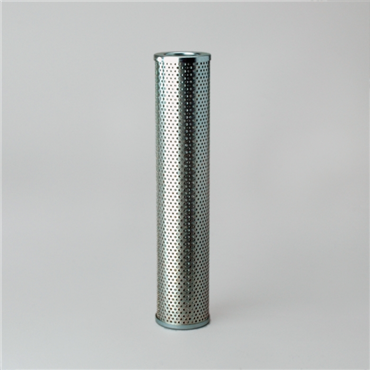

Donaldson P763185 Cartridge Fuel Filter

Product Description

The Donaldson P763185 is a cartridge fuel filter designed for effective filtration in various applications. This filter features an outer diameter of 2.82 inches and a length of thirteen point seventy-eight inches. It offers reliable performance with an efficiency rating of 11 microns at Beta 1000.

• Primary application for TAMROCK 04004080
• Synthetic media type
• Collapse burst resistance of 145 psi

Product Highlights

This cartridge style fuel filter is suitable for heavy-duty applications and helps in maintaining optimal performance by filtering out contaminants effectively.

Product Information

Standard Information

• Brand: Donaldson
• Part Number: 100181827

Technical Specifications

• Outer Diameter: 2.82 inches (71.6 mm)
• Length: 13.78 inches (350 mm)
• Inner Diameter: 0.79 inches (20 mm)
• Efficiency Rating: 11 micron @ Beta 1000
• Collapse Burst Pressure: 145 psi (10 bar)
• Weight: 0.95 lb
• Media Type: Synthetic
• EAN or UPC: 742330127452
