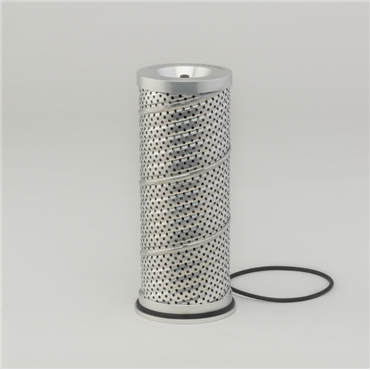

Donaldson P580131 Fuel Filter

Product Description

The Donaldson P580131 Fuel Filter ensures clean fuel for optimal engine performance. This fuel filter incorporates advanced filtration technology to remove harmful particulates. It features a significant outer diameter of three point four two inches, making it a perfect fit for various applications.

• Outer Diameter: 3.42 inches
• Length: 8.06 inches
• Bypass Valve: Yes

Product Highlights

This fuel filter is designed to meet high-performance standards, ensuring efficiency in fuel delivery while protecting engine components.

Product Information

Standard Information

• Brand: Donaldson
• Part Number: P580131

Technical Specifications

• Length: 8.06 inches, 204.85 mm
• Outer Diameter: 3.42 inches, 86.87 mm
• Seal Material: Viton
• Media Brand: DT High-Performance
• Efficiency Beta: 12 Micron @ Beta 1000
• Bypass Valve Setting LR: 24.95 psi, 1.72 bar
• Maximum Operating Temperature: 121 °C
• Collapse Burst: 149.39 psi, 10.3 bar
• Weight: 1.322 lb
• EAN or UPC: 742330231692
