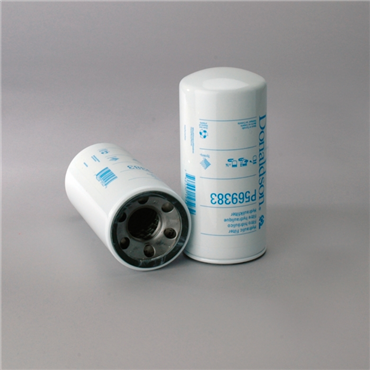

Donaldson P569383 Spin-On Fuel Filter

Product Description

The Donaldson P569383 is a spin-on fuel filter designed for high performance in hydraulic applications. This filter features an outside diameter of three point six six inches and a thread size of one and a half by sixteen UN. It is widely used in the hydraulic industry and interchangeable with filters from various manufacturers.

• Increased dirt holding capacity for extended filter life
• Meets original filter element specifications
• Durable synthetic media

Product Highlights

This fuel filter effectively captures contaminants to ensure optimal flow and system performance.

Product Information

Standard Information

• Brand: Donaldson
• Part Number: 100176921

Technical Specifications

• Outer Diameter: 3.66 inches (92.96 mm)
• Length: 8.06 inches (204.72 mm)
• Media Type: Synthetic
• Efficiency Beta: 23 Micron @ Beta 1000
• Collapse Burst: 246.56 psi (17 bar)
• Gasket ID: 2.89 inches (73.4 mm)
• Gasket OD: 3.39 inches (86 mm)
• Primary Application: PALL HC7400SKT8H
