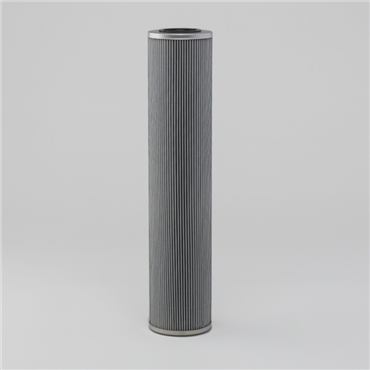

Donaldson P568093 Cartridge Fuel Filter

Product Description

The Donaldson P568093 Cartridge Fuel Filter is designed for effective filtration in fuel systems. This cartridge style filter measures 3.83 inches in outer diameter and 1.9 inches in inner diameter. It is suitable for a variety of applications that require reliable fuel filtration.

• Outer Diameter: 3.83 inches
• Cartridge Style
• Media Type: Synthetic

Product Highlights

This filter offers strong performance with an efficiency of 12 microns at Beta 1000. Its nitrile seal material provides durability and resistance against fuel degradation. The filter's collapse burst rating stands at 149.39 psi, ensuring reliability under pressure.

Product Information

Standard Information

• Brand: Donaldson
• Part Number: P568093

Technical Specifications

• Inner Diameter: 1.9 inches, 48.3 mm
• Outer Diameter: 3.83 inches, 97.2 mm
• Length: 18.06 inches, 458.8 mm
• Media Type: Synthetic
• Efficiency Beta: 12 Micron @ Beta 1000
• Collapse Burst: 149.39 psi, 10.3 bar
• Seal Material: Nitrile
• Weight: 2.3 LB
