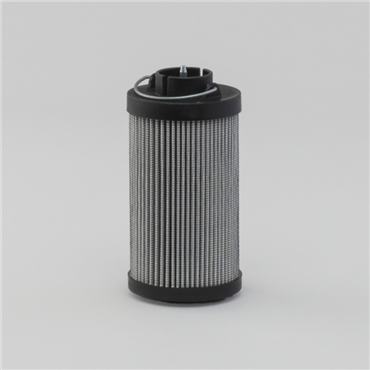

Donaldson P566971 Cartridge Fuel Filter

Product Description

The Donaldson P566971 is a cartridge fuel filter designed to provide effective filtration in hydraulic systems. This filter ensures clean fuel supply by trapping contaminants from the fuel before they reach sensitive engine components.

• Overall length of five point six seven inches
• Outer diameter of two point eight six inches
• Media type is synthetic for efficient filtration

Product Highlights

This fuel filter is suitable for a variety of hydraulic applications, providing reliable performance with a collapse burst of one hundred forty nine point three nine psi.

Product Information

Standard Information

• Brand: Donaldson
• Part Number: 101613229

Technical Specifications

• Inner Diameter: 1.42 inches, 36 mm
• Outer Diameter: 2.86 inches, 72.6 mm
• Overall Length: 5.67 inches, 144 mm
• Media Type: Synthetic
• Seal Material: Viton
• Collapse Burst: 149.39 psi, 10.3 bar
• Efficiency Beta: 14 Micron @ Beta 1000
• Weight: 1.0 LB
• EAN or UPC: 742330190258
