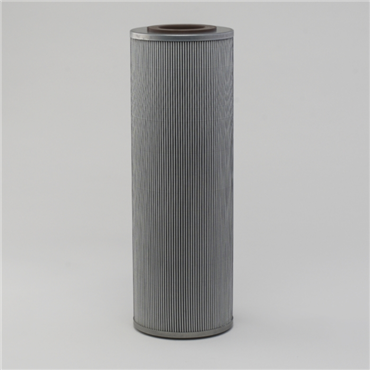

Donaldson P566705 Cartridge Fuel Filter 6.1 in O.D. Replacement MPN

Product Description

The Donaldson P566705 is a cartridge fuel filter designed for high performance. This fuel filter maintains fuel cleanliness and protects the engine from harmful contaminants. With a six point one inches outer diameter, it provides robust filtration at a competitive level.

• High Burst Pressure: Designed to handle up to 124.73 psi.
• Efficient Filtration: Filters to 5 microns at beta 1000 efficiency.
• Durable Construction: Made with synthetic media and Viton seal material.

Product Highlights

This cartridge style fuel filter is suitable for various applications and offers extended service life. Ideal for those who need reliable fuel filtration in demanding environments.

Product Information

Standard Information

• Brand: Donaldson
• Part Number: 101456582

Technical Specifications

• Collapse Burst: 124.73 psi, 8.6 bar
• Overall Length: 17.99 in, 457 mm
• Outer Diameter: 6.02 in, 152.8 mm
• Inner Diameter: 2.87 in, 72.9 mm
• Media Type: Synthetic
• Seal Material: Viton
• Efficiency Beta: 5 Micron @ Beta 1000
• Weight: 3.96 LB
