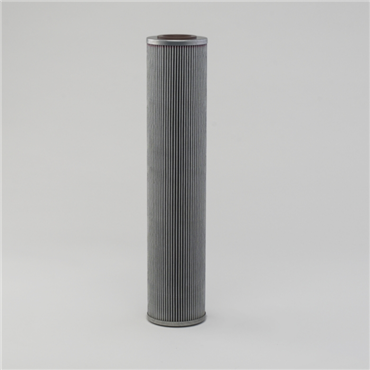

Donaldson P566274 Cartridge Fuel Filter

Product Description

The Donaldson P566274 Cartridge Fuel Filter is designed to provide efficient fuel filtration for various applications. It features a cartridge style that fits easily into compatible systems. This filter helps protect engines and fuel systems from debris and contaminants that could cause damage.

• Outer diameter of three point eight five inches
• Overall length of eighteen point three two inches
• Filters down to five microns for enhanced protection

Product Highlights

The P566274 is ideal for those needing reliable fuel filtration in their operations. It combines a sturdy design with effective media to ensure the purity of fuel.

Product Information

Standard Information

• Brand: Donaldson
• Part Number: 100720096

Technical Specifications

• Overall Length: 18.32 inches
• Outer Diameter: 3.85 inches
• Inner Diameter: 1.61 inches
• Media Type: Synthetic
• Seal Material: Viton
• Collapse Burst: 149.39 psi
• Efficiency Beta: 5 Micron @ Beta 1000
• Primary Application: SCHROEDER KKZ1
