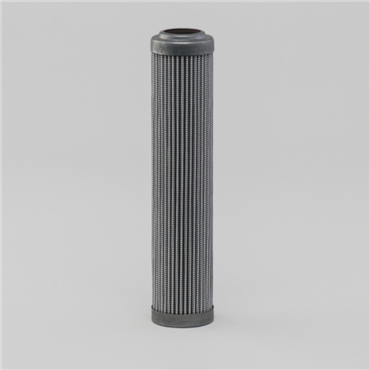

Donaldson P566202 Cartridge Fuel Filter 1.77 in Replacement MPN

Product Description

The Donaldson P566202 Cartridge Fuel Filter is designed to provide superior filtration and protection for your equipment. This element is crucial for maintaining the efficiency of high-pressure systems. It features synthetic media that enhances its dirt-holding capacity and extends the filter's lifespan.

• 1.77 inches Outer Diameter
• Hydraulic Cartridge Style
• High efficiency media grades

Product Highlights

This filter combines advanced pleat pack design with high efficiency media to ensure optimal performance under demanding conditions.

Product Information

Standard Information

• Brand: Donaldson
• Part #: 110002567

Technical Specifications

• Inner Diameter: 0.96 inches / 24.4 mm
• Outer Diameter: 1.77 inches / 45 mm
• Overall Length: 8.18 inches / 207.8 mm
• Element Description: Hydraulic Cartridge
• Media Type: Synthetic
• Collapse Burst: 249.46 psi / 17.2 bar
• Efficiency Beta: 12 Micron @ Beta 1000
• Seal Material: Viton
