Donaldson P563356 Breather 3.15 in Outside Diameter

Product Description

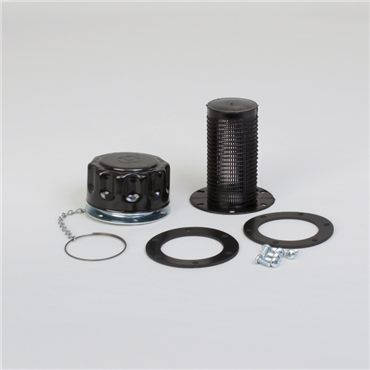

The Donaldson P563356 is a breather designed for effective filtration. It features Buna gaskets that are standard and is compatible with petroleum-based fluids. The air intake valve activates at 0.435 psi, ensuring efficient operation. It has relief valve settings at five or ten psi for full rate flow, providing flexibility in pressure management.

The breather operates effectively within a temperature range of negative twenty-two degrees Fahrenheit to positive two hundred forty degrees Fahrenheit, making it suitable for various environments. The product comes with chrome-plated, epoxy-coated, or zinc-plated steel caps for durability.

• 3.15 inches outside diameter
• Compatible with petroleum-based fluids
• Temperature range: -22°F to +240°F

Product Highlights

The Donaldson P563356 breather offers reliable performance for various applications, providing temperature resilience and effective pressure management.

Product Information

Standard Information

• Brand: Donaldson
• Part Number: 100181244

Technical Specifications

• Flange Diameter: 3.27 inches, 83 mm
• Bolt Hole Circle Diameter: 2.87 inches, 73 mm
• Outer Diameter: 3.15 inches, 80 mm
• Length: 6.1 inches, 155 mm
• Bolt Hole Diameter: 0.24 inches, 6 mm
• Efficiency Beta: 10 Micron @ Beta 20
• EAN or UPC: 742330158432
• Weight: 0.8 LB
