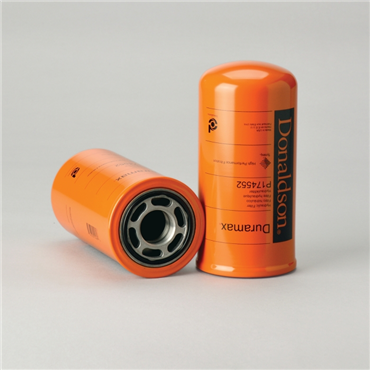

Donaldson P174552 Spin-On Fuel Filter 3.82 in Diameter 1 3/8-12 UN

Product Description

The Donaldson P174552 is a spin-on fuel filter designed for reliable engine protection. This filter has an outside diameter of three point eight two inches and a thread size of one and three eighths by twelve UN. It is suitable for various applications, providing efficient filtration and easy installation.

• Gasket ID measures two point four eight inches.
• Constructed with synthetic media.
• Designed for high efficiency with a beta rating of eleven microns.

Product Highlights

The Donaldson P174552 ensures high filtration efficiency and ease of use with its spin-on design, making it a valuable component in maintaining engine performance.

Product Information

Standard Information

• Brand: Donaldson
• Model Number: P174552

Technical Specifications

• Outer Diameter: 3.82 inches (97 mm)
• Length: 7.88 inches (200.2 mm)
• Media Type: Synthetic
• Efficiency Beta: 11 Micron @ Beta 1000
• Gasket ID: 2.48 inches (63.1 mm)
• Thread Size: 1 3/8-12 UN
• Weight: 2.7 LB
• EAN or UPC: 742330024898
