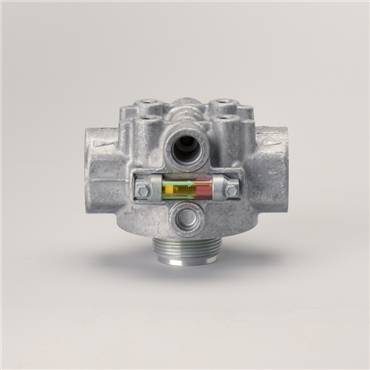

Donaldson P167294 Head Assembly

Product Description

The Donaldson P167294 Head Assembly is designed for medium-duty filtration in various applications. This assembly is commonly utilized in return line applications but is also effective in charge pressure and control systems. It is suitable for kidney loop offline filtration systems where high-quality filtration is needed. The filter head and element are sold separately to tailor to specific setups.

• 1 1/4-11 1/2 NPT inlet and outlet sizes
• Spin-on-style filter element with synthetic media
• Maximum pressure rating of 100 psi

Product Highlights

This assembly features inline mounting, ensuring easy integration into existing systems. It is built to ensure reliable performance across various filtration tasks.

Product Information

Standard Information

• Brand: Donaldson
• Part Number: 100178304

Technical Specifications

• Bypass Valve Setting LR: 24.66 psi, 1.7 bar
• Max Flow GPM (Head Only): 50
• Inlet Size: 1 1/4-11 1/2 NPT
• Outlet Size: 1 1/4-11 1/2 NPT
• Length: 5.03 in, 127.76 mm
• Height: 3.79 in, 96.27 mm
• Thread Size: 1 3/4-12 UN
• Weight: 2.6 lb
