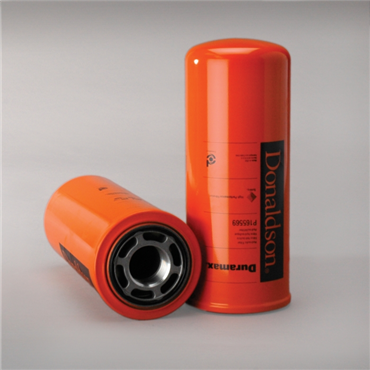

Donaldson P165569 Spin-On Fuel Filter

Product Description

The Donaldson P165569 spin-on fuel filter is designed for effective filtration in high flow applications. The filter features a heavy-duty steel body with a durable die-cast top plate for added strength. It also includes a special O-ring seal to prevent leakage, ensuring reliability in operation. With Buna-N seals as standard, this filter handles working pressures up to three hundred fifty psi and has a static burst rating of eight hundred psi.

• Working pressure up to 350 psi
• Flow range to 50 gallons per minute
• Increased dirt holding capacity

Product Highlights

This fuel filter meets or exceeds original specifications, ensuring long-lasting performance and durability.

Product Information

Standard Information

• Brand: Donaldson
• Part Number: 100178240

Technical Specifications

• Element Description: Hydraulic Spin-On
• Filter Series: HMK05/25
• Gasket ID: 3.11 in (79 mm)
• Gasket OD: 3.39 in (86 mm)
• Efficiency Beta: 23 Micron @ Beta 1000, 7 Micron @ Beta 2, 18 Micron @ Beta 200
• Length: 11.63 in (295.4 mm)
• Thread Size: 1 3/4-12 UN
• Outer Diameter: 4.76 in (121 mm)
• Weight: 4.1 lb
• Media Type: Synthetic
• EAN or UPC: 742330017326
