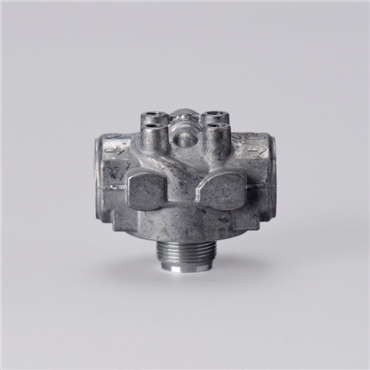

Donaldson P163681 Head Assembly - SAE-16 Inlet and Outlet

Product Description

The Donaldson P163681 Head Assembly is designed for efficient mounting of spin-on filters in-line. This assembly helps ensure optimal fluid filtration and system performance.

• SAE-16 inlet and outlet sizes for compatibility.
• Features a cast aluminum head for easy installation.
• Bypass valve included to enhance filter functionality.

Product Highlights

This head assembly is suitable for applications requiring robust filtration solutions.

Product Information

Standard Information

• Brand: Donaldson
• Part Number: 100178138

Technical Specifications

• Bypass Valve Setting LR: 24.66 psi, 1.7 bar
• Series: HMK04/24
• Family Name: HMK04/24 Series Engine Cylinder Head Assembly
• Filter Series: HMK04/24
• Height: 3.38 inches, 85.85 mm
• Inlet Size: SAE-16
• Length: 4 inches, 101.6 mm
• Thread Size: 1 3/8-12 UN
• Filter-to-Head Thread: 1 3/8-12 UN
• Outlet Size: SAE-16
• Weight: 1.3 LB
• EAN or UPC: 742330015681
