Don-jo FS260PC Ansi Strike Filler Plate Prime Coat

Product Description

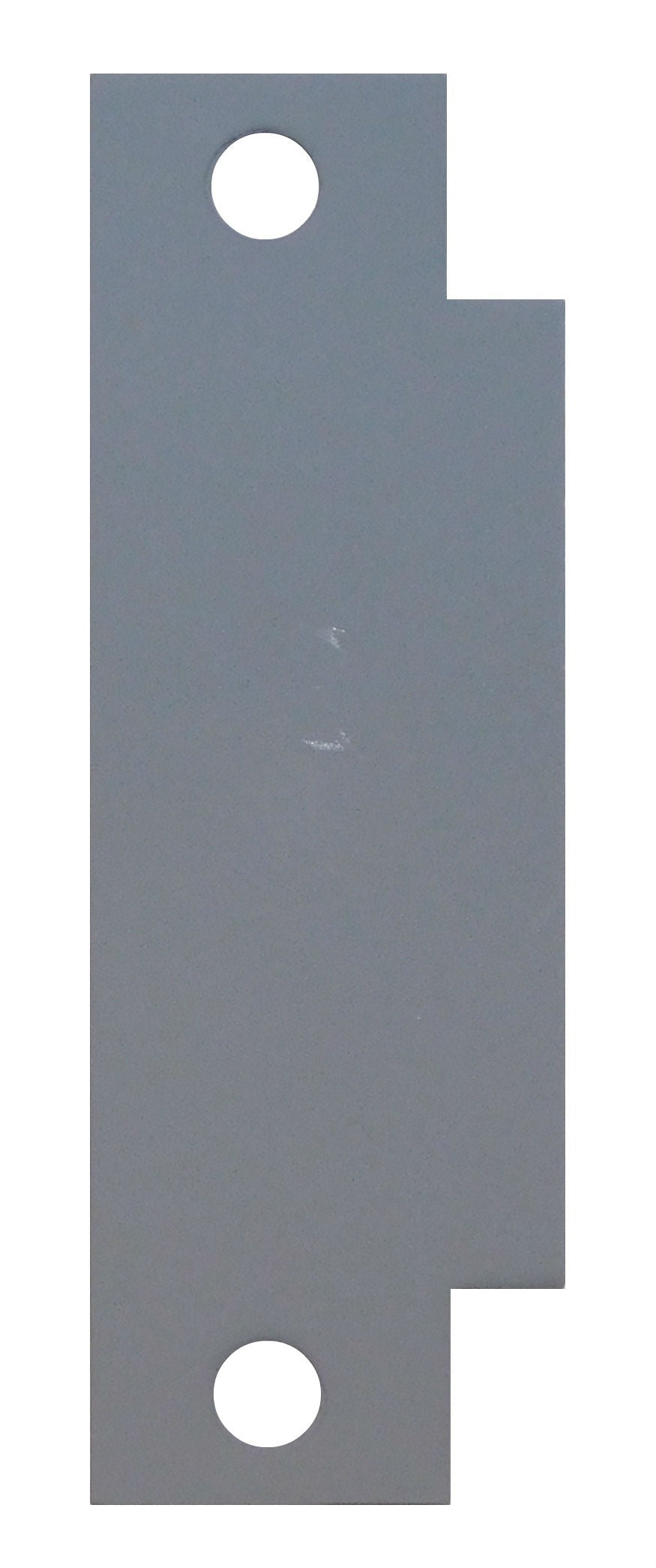

The DON-JO FS260PC is an ANSI strike filler plate designed to cover unused or misaligned ANSI strike cutouts in door frames. Measuring 1.25 inches wide by 4.875 inches long, it fills the standard ANSI strike mortise cleanly, restoring the frame face without requiring wood filler or frame replacement. The prime coat finish accepts paint, making it suitable for field finishing to match the surrounding frame. At 0.2 pounds, it is a lightweight, low-profile solution used by door hardware installers, locksmiths, and carpenters during retrofit and repair work.

This filler plate is typically installed when a mortise lock or cylindrical lock is replaced with a unit that uses a different strike configuration, or when an existing strike cutout needs to be concealed during a renovation or rekeying project. It is well suited for commercial and residential door frames where a clean, finished appearance is required after hardware changes. The prime coat finish makes it ready for on-site painting to blend with hollow metal or wood frames.

Key Features

• Covers standard ANSI strike mortise cutouts in door frames
• Prime coat finish accepts field-applied paint for a seamless frame appearance
• Compact dimensions of 1.25 inches x 4.875 inches match common ANSI strike footprints
• Lightweight at 0.2 pounds for easy single-technician handling
• Sold individually, with a case quantity of 10 for larger projects

Compatibility

Designed as a filler plate for standard ANSI strike mortise cutouts found in residential and commercial door frames.

Installation Notes

Installation is performed by locksmiths, door hardware installers, or carpenters. Before installing, ensure the door is secured in an open position and verify the frame is free of debris in the mortise area. Fasten the plate using appropriate fasteners for the frame material. Prime coat finish should be painted after installation to meet finish requirements per local building or fire door standards.
