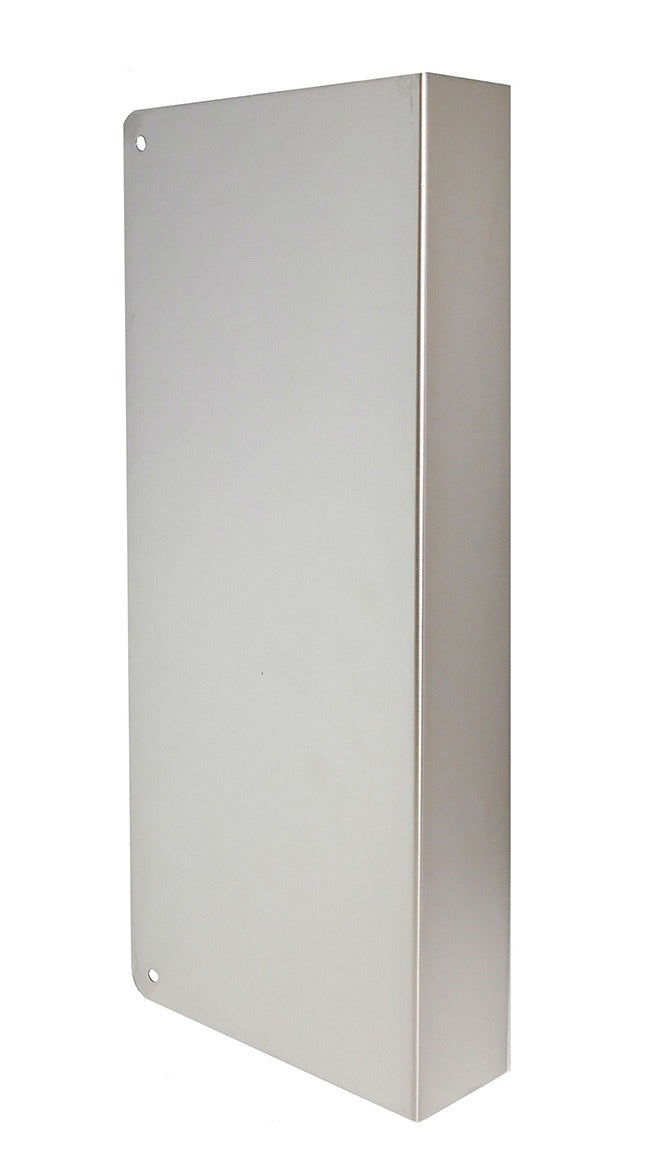

Don-jo CW90S Blank Wrap Around 12 in Stainless Steel

Product Description

The DON-JO CW90S is a blank wrap around plate designed for 1-3/4 inch doors with a stainless steel finish. Wrap around plates reinforce the door face around the lock area, providing a protective barrier against forced entry and wear at the latch or deadbolt cutout. This unit ships as a single piece and is typically installed by locksmiths, door hardware technicians, or finish carpenters during new construction or retrofit work. At 12.6 inches in length and 1.3 pounds, it fits standard commercial and residential door preparations without requiring significant modification.

The CW90S is suited for commercial and residential applications where door reinforcement is needed on 1-3/4 inch thick door slabs. It is commonly installed on wood or hollow metal doors at the lock edge to protect against pry attacks and to cover worn or damaged areas around the latch bore. The stainless steel finish provides corrosion resistance in high-traffic or exterior-adjacent environments where hardware durability is a priority.

Key Features

• Blank face with no pre-drilled holes — field-drilled to match existing lock prep
• Stainless steel finish resists corrosion and wear in demanding environments
• 12.6 inch length provides extended coverage along the lock stile
• Designed specifically for 1-3/4 inch door thickness
• Lightweight at 1.3 pounds for easy single-technician installation

Compatibility

Designed as an OEM-style replacement or new-installation wrap around for 1-3/4 inch residential and commercial doors requiring lock area reinforcement.

Installation Notes

Installation is typically performed by a licensed locksmith or door hardware technician. The blank face requires field drilling to align with the existing lock bore and latch prep on the door. Ensure the door is secured open and all lock hardware is removed before marking and drilling. Follow local building codes and manufacturer instructions for fastener placement and door preparation requirements.
