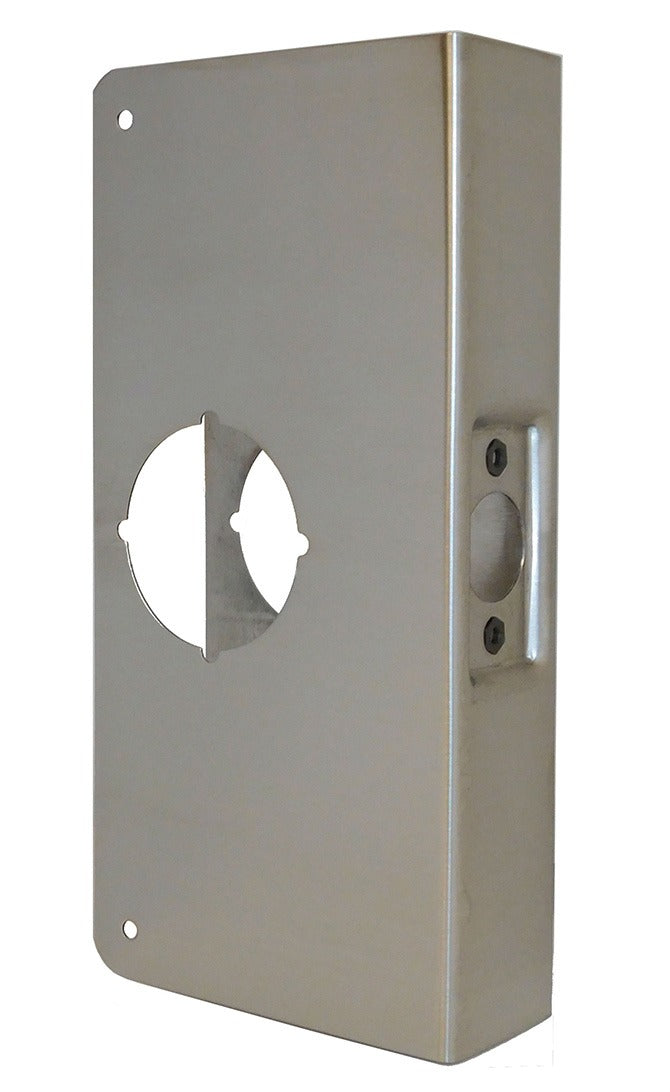

Don-jo CW2S Wrap Around Plate Cylindrical Lock Stainless

Product Description

The DON-JO CW2S is a classic wrap around reinforcement plate designed for cylindrical door locks. It fits doors with a 2-3/8 inch backset and a standard 2-1/8 inch bore hole, and is sized for 1-3/4 inch thick doors. The plate is finished in stainless steel, providing corrosion resistance for high-traffic commercial and residential door applications. Locksmiths, door hardware installers, and general contractors install this type of reinforcement plate to strengthen the door face around the lockset and reduce the risk of kick-in or forced-entry damage at the latch bore area.

The CW2S is suited for commercial and residential entry doors where cylindrical locksets are installed. It is commonly used in retrofit and new-construction scenarios where additional door reinforcement is required at the cylindrical lock location. The stainless steel finish makes it appropriate for exterior and interior applications where appearance and durability both matter. It is sold individually as a single unit.

Key Features

• Reinforces the door face around the cylindrical lockset bore to resist forced entry
• Fits 2-3/8 inch backset cylindrical locks with a 2-1/8 inch hole
• Sized for 1-3/4 inch door thickness
• Stainless steel finish resists corrosion in interior and exterior door applications
• Compact profile: 9.6 inches long by 4.5 inches wide by 2 inches in height
• Lightweight at 0.8 pounds for easy handling during installation

Compatibility

Designed as an OEM-style reinforcement plate for cylindrical locksets with a 2-1/8 inch bore, 2-3/8 inch backset, installed on 1-3/4 inch doors.

Installation Notes

Installation is typically performed by a licensed locksmith or door hardware professional. The existing lockset must be fully removed before the wrap around plate is positioned over the bore hole and secured to the door face. Follow local building and fire codes when reinforcing rated or labeled door assemblies, as modifications may affect door certification. Use only fasteners appropriate for the door material and thickness to ensure the plate seats flush and does not interfere with lockset operation.
