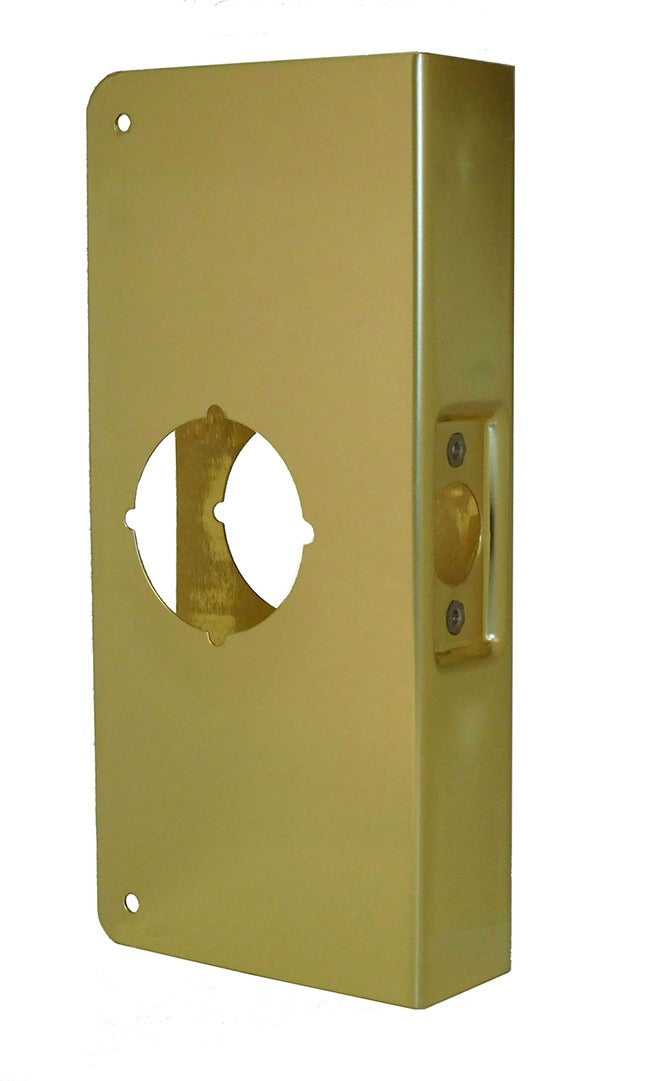

Don-jo CW2PB Wrap Around Plate Bright Brass Cylindrical Lock

Product Description

The DON-JO CW2PB is a classic wrap around plate designed to reinforce and finish the area surrounding a cylindrical door lock. It fits doors with a 2-1/8 inch bore hole, a 2-3/8 inch backset, and a 1-3/4 inch door thickness. The plate installs on the face of the door to cover the area around the lockset prep, providing a clean, finished appearance while adding a layer of protection against door edge damage and forced entry leverage points. It ships in a bright brass finish suited for matching standard residential and light commercial door hardware. Locksmiths, door hardware installers, and commercial door service technicians are the primary installers.

This wrap around plate is appropriate for use on interior and exterior doors in residential and light commercial applications where cylindrical locksets are installed. It is intended for doors that are 1-3/4 inches thick with a standard 2-3/8 inch backset. The plate is used during new lockset installation or as a retrofit to upgrade the appearance and protection of an existing cylindrical lock prep. It is sold individually and works with standard cylindrical lock preparations common in residential entry doors, apartment units, and light commercial door assemblies.

Key Features

• Fits 2-1/8 inch cylindrical bore hole for standard lockset prep
• Designed for 2-3/8 inch backset cylindrical locks
• Compatible with 1-3/4 inch door thickness
• Bright brass finish for matching standard residential and commercial hardware
• Covers and protects the door face around the lockset bore
• Sold as individual unit, no minimum order quantity required

Compatibility

Designed as an OEM-style replacement and retrofit wrap around plate for cylindrical lockset installations on 1-3/4 inch doors with a 2-3/8 inch backset and a 2-1/8 inch bore hole.

Installation Notes

Installation is performed by locksmiths or door hardware technicians. Before installation, confirm the existing door prep matches the required bore hole diameter, backset, and door thickness. The plate is surface-mounted to the door face and secured with fasteners aligned to the lockset body. Always verify the lockset and wrap around plate are compatible before final installation to ensure proper fit and function.
