Dodge XTB30 X 1-7/16 Conveyor Bushing 1.4375 in Bore 5.3125 in Flg OD 226858

Product Description

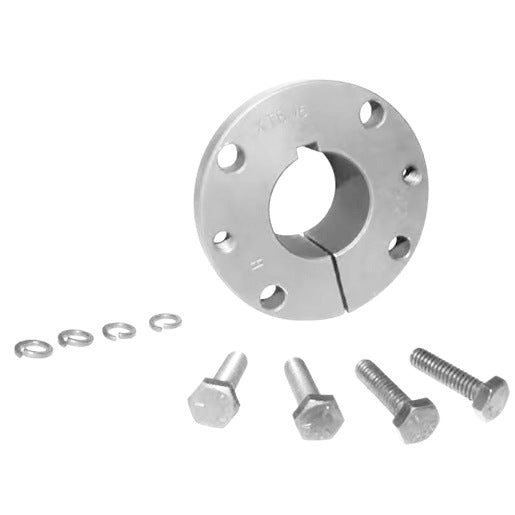

Dodge XTB30 X 1-7/16 is a bushing designed for conveyor applications. This product features a bore diameter of one point four three seven five inches and a flange outside diameter of five point three one two five inches. It is manufactured from steel or gray cast iron, making it suitable for heavy-duty use in various mechanical systems.

• Designed for conveyor pulley applications.
• Easy installation with a two inch per foot taper for convenient removal.
• Material options include steel and gray cast iron.

Product Highlights

This bushing is ideal for mechanical power transmission systems and offers reliable performance in demanding environments.

Product Information

Standard Information

• Brand: Dodge
• Part Number: XTB30 X 1-7/16

Technical Specifications

• Bore Diameter: 1.4375 inches
• Flange Outside Diameter: 5.3125 inches
• Length Through Bore: 2.0625 inches
• Material: Steel or Gray Cast Iron
• Number Of Bolt Holes: 4
• Flange Thickness: 0.6875 inches
• Screw Thread Size: 7/16-14NC
• Manufacturers Catalog Number: 226858
