Dodge XTB25X2-7/16 | 2.4375 Bore | 4.4375 Flg OD | 226857

Product Description

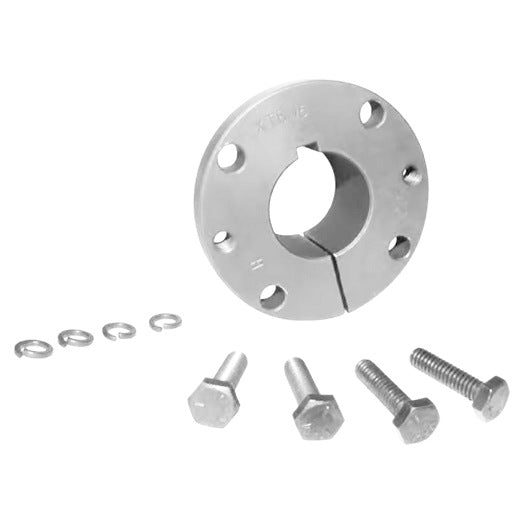

The Dodge XTB25X2-7/16 is a conveyor bushing designed for industrial applications. This bushing features a bore size of two point four three seven five inches and an outside flange diameter measuring four point four three seven five inches. This product is mostly used in conveyor systems to provide reliable support and alignment for rotating shafts.

• Constructed for easy installation and removal.
• Compatible with steel or gray cast iron.
• Designed for effective power transmission in conveyor systems.

Product Highlights

Effective for conveyor pulley applications with a two inches per foot taper.

Product Information

Standard Information

• Brand: Dodge
• Part Number: XTB25X2-7/16

Technical Specifications

• Bore Diameter: 2.4375 inches
• Flange Outside Diameter: 4.4375 inches
• Length Through Bore: 1.8750 inches
• Barrel Diameter: 3.1875 inches
• Flange Thickness: 0.6250 inches
• Number Of Bolt Holes: 4
• Installation Torque: 29.2 ft-lbs
• Manufacturer Catalog Number: 226857
