Dodge XTB25 X 1-7/16 Bushing Power 1.4375 inches Replacement MPN 226851

Product Description

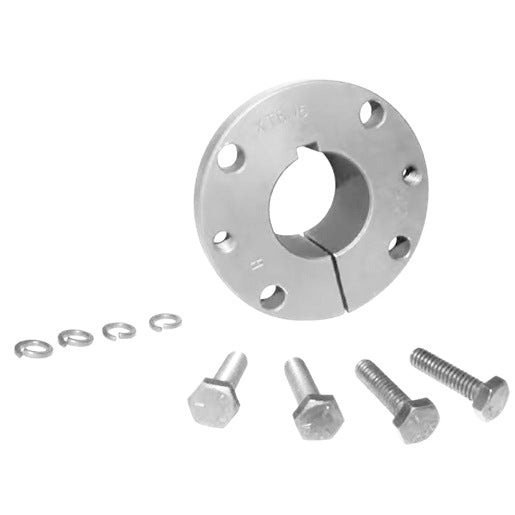

The Dodge XTB25 X 1-7/16 is a precision bushing with an inner bore of one and four hundred thirty-seven thousand five hundred inches. This bushing is suited for use in various mechanical applications, especially in conveyor systems. It features a design that allows for easy installation and removal, making it ideal for routine maintenance.

• Compatible with conveyor pulleys
• Constructed from steel or gray cast iron
• Offers a two-inch-per-foot taper for ease of use

Product Highlights

Ideal for multiple mechanical applications, the Dodge XTB25 X 1-7/16 bushing ensures quick setup and reliability in operations.

Product Information

Standard Information

• Brand: Dodge
• MPN: XTB25 X 1-7/16

Technical Specifications

• Bore Diameter: 1.4375 inches
• Flange Outside Diameter: 4.4375 inches
• Barrel Length: 1.25 inches
• Length Through Bore: 1.875 inches
• Number Of Bolt Holes: 4
• Flange Thickness: 0.625 inches
• Installation Torque: 29.2 ft-lbs
• Manufacturer Catalog: View Catalog
