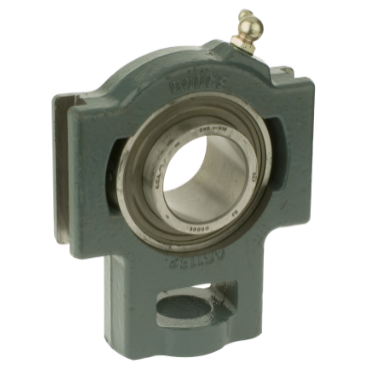

Dodge WSTUSXR50M Ball Bearing Take-Up Unit

Product Description

The Dodge WSTUSXR50M is a reliable ball bearing take-up unit designed for various applications in textile, agriculture, food, unit handling, paper, and forest products industries. It features a precision-hardened inner ring for enhanced durability and reliable performance.

• Precision-hardened inner ring
• DualGuard sealing system
• Anti-rotation pin for easy insert replacement

Product Highlights

This take-up unit is built to provide superior shock load absorption and protect against contaminants. Its patented Maxlife cage design allows for efficient grease retention, leading to cooler operating temperatures and enhanced stability.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 101860822

Technical Specifications

• Shank Slot Length: 3/4 inches
• Bearing Design: Non-Expansion
• Slot Length: 3 3/8 inches
• Shaft Diameter: 50 mm
• Shank End to Center of Shaft: 3 9/16 inches
• Screw Diameter: 1 inches
• Locking Device: Eccentric Locking Collar
• Seal Type: Contact Seals
• Overall Length: 5.8125 inches
• Take-Up Types: Wide Slot
• Weight: 6.8 lb
• Housing Material: Cast Iron
