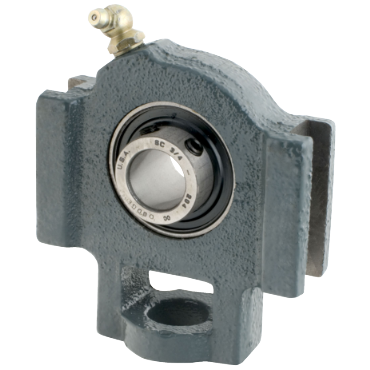

Dodge WSTUSC50M Ball Bearing Take-Up Unit

Product Description

The Dodge WSTUSC50M is a ball bearing take-up unit designed for various applications including air handling and food processing. This unit is constructed with a cast iron housing for durability and a slot width of seventeen point five millimeters.

• Features a DualGuard sealing system for enhanced protection
• Precision hardened inner and outer rings for quiet operation
• Anti-rotation pin simplifies insert replacement

Product Highlights

This product is suitable for industries such as automotive, chemical, and packaging.

Product Information

Standard Information

• Brand: Dodge
• Part Number: WSTUSC50M

Technical Specifications

• Locking Device: Setscrew Locking Collar
• Screw Diameter: 25.4 mm
• Shank Slot Length: 19.1 mm
• Overall Height: 101.6 mm
• Slot Width: 17.5 mm
• Overall Width: 49.2 mm
• Housing Width: 49.2 mm
• Bearing Design: Non-Expansion
• Shaft Diameter: 50 mm
• Lubrication: Relubricatable
• Housing Material: Cast Iron
• Shank Height: 90.5 mm
• Seal Type: Contact Seals
• Type: Ball Bearing
• Overall Length: 147.6 mm
• Weight: 5.47 lb
• EAN or UPC: 782475653447
