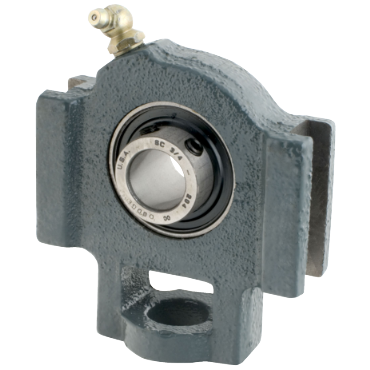

Dodge WSTUSC104S Take-Up Ball Bearing Unit - Side Mount, 1.2500 in Bore, Cast Iron Housing, Set Screw Collar, 0.5313 in Slot

Product Description

The Dodge WSTUSC104S is a take-up ball bearing unit designed for efficient operation in various applications. This unit features a bore diameter of one and one-quarter inches and is constructed with a cast iron housing for durability. It is equipped with a set screw collar to ensure a secure attachment to the shaft.

• Bore Length: 1.52 inches
• Maximum Speed: 4500 RPM
• Relubricatable: Yes

Product Highlights

The WSTUSC104S is suited for use in various industrial settings. Its solid construction and grease lubrication type make it appropriate for reliable performance even in challenging environments.

Product Information

Standard Information

• Brand: Dodge
• Country of Origin: United States

Technical Specifications

• Bore Diameter: 1-1/4 inches
• Housing Material: Cast Iron
• Type of Bearing: Ball
• Sealing Type: Single-Lip Contact
• Insert Material: Steel
• Expansion Capability: Non-Expansion (Fixed)
• Housing Type: Wide-Slot Takeup
• Radial Dynamic Load Capacity: 4368 lbf
