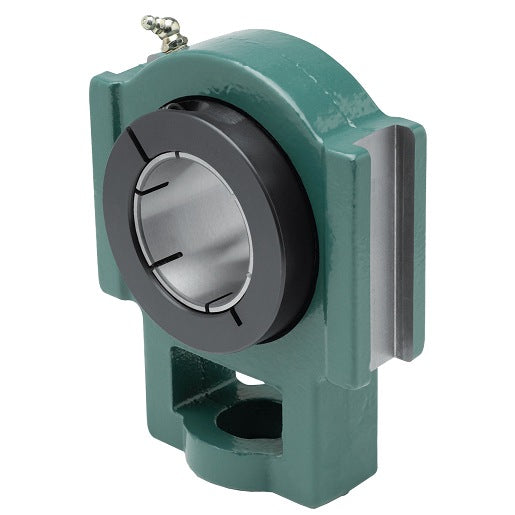

Dodge WSTU-DL-207 Take-Up Ball Bearing Unit - Side Mount, 2.4375 inches Bore, Concentric Collar

Product Description

The Dodge WSTU-DL-207 is a Side Mount Take-Up Ball Bearing Unit designed for various industrial applications. This unit features a bore size of two and three-eighths inches and is built to accommodate specific mounting requirements. The product is suitable for fixed applications with its solid housing construction.

• Bore Diameter: 2.4375 inches
• Maximum Speed: 3500 rpm
• Housing Material: Cast Iron

Product Highlights

The Dodge WSTU-DL-207 is ideal for use in scenarios requiring reliable performance. Its design allows for easy installation and maintenance.

Product Information

Standard Information

• Brand: Dodge
• MPN: WSTU-DL-207

Technical Specifications

• Bore Diameter: 2-7/16 inches
• Bore Length: 2.38 inches
• Lubrication: Grease
• Sealing Type: Single-Lip Contact
• Weight: 12.475 lbs
• Radial Dynamic Load Capacity: 11791 lbf
• Type of Bearing: Ball
• Housing Type: Wide-Slot Takeup
