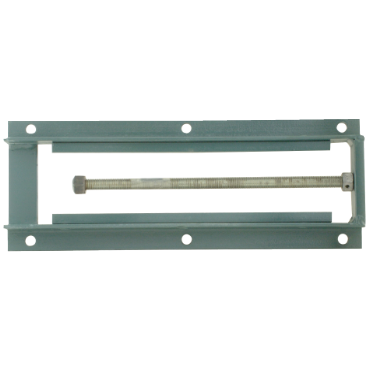

Dodge WS515X9TUFR Side Mounted Take-Up Frame

Product Description

The Dodge WS515X9TUFR is a side-mounted take-up frame designed for belt and chain conveyors. This frame has a travel capacity of nine inches and dimensions of twenty and seven-eighths inches in length, twelve inches in width, and three inches in height. It offers a robust solution for accommodating belt tension adjustments in conveyor systems.

• Compatible with belt and chain conveyors
• Nine inches of travel for adjusting tension
• Durable construction for long-term use

Product Highlights

This take-up frame is ideal for industrial applications where durability and reliability are essential. It provides an effective means to adjust belt tension, ensuring smooth operation in conveyor systems.

Product Information

Standard Information

• Brand: Dodge
• Part Number: WS515X9TUFR

Technical Specifications

• Frame Length: 20 7/8 inches
• Travel: 9 inches
• Base Width: 12 inches
• Overall Height: 3 inches
• Flange Thickness: 1/4 inches
• Bolt Hole Spacing - Length: 17 1/2 inches
• Bolt Hole Spacing - Width: 10.25 inches
• Weight: 36.32 lbs
• UPC: 782475583751
