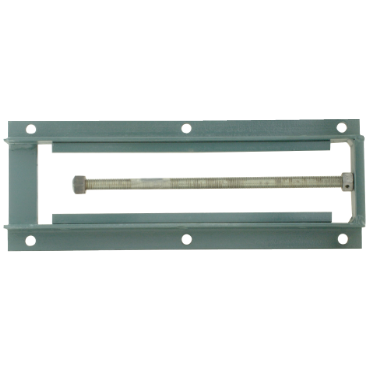

Dodge WS515X12TUFR Side Mounted Take-Up Frame

Product Description

The Dodge WS515X12TUFR is a side-mounted take-up frame designed for use with belt and chain conveyors. This frame offers a travel of twelve inches and has a sturdy construction for reliable performance in various industrial applications.

• Designed for belt and chain conveyors
• Travel length of twelve inches
• Overall dimensions of twenty-three and seven-eighth inches long, twelve inches wide, and three inches high

Product Highlights

This frame is ideal for maintaining proper tension in conveyor systems, helping to extend the life of belts and chains.

Product Information

Standard Information

• Brand: Dodge
• MPN: WS515X12TUFR

Technical Specifications

• Travel: 12 inches
• Weight: 41.7 lbs
• Base Width: 12 inches
• Frame Length: 23 7/8 inches
• Overall Height: 3 inches
• Flange Thickness: 1/4 inches
• Bolt Hole Spacing - Width: 10.25 inches
• Bolt Hole Spacing - Length: 10 1/4 inches
