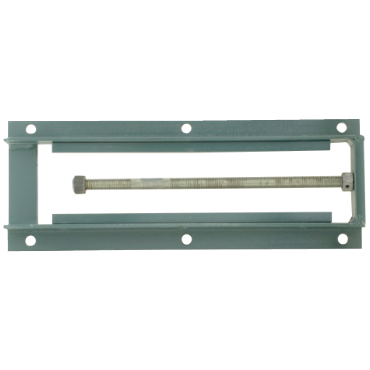

Dodge WS502X18TUFR Side Mounted Take-Up Frame

Product Description

The Dodge WS502X18TUFR is a side mounted take-up frame designed for belt and chain conveyors. This robust frame provides an effective means of adjusting tension while maintaining alignment and stability. The frame measures twenty-six and three-fourths inches in length, ten and seven-sixteenths inches in width, and two and a half inches in height, ensuring compatibility with a variety of applications.

• Travel distance of eighteen inches allows for effective tension adjustments.
• Constructed for durability in rigorous environments.
• Ideal for use with belt and chain conveyors.

Product Highlights

This take-up frame offers essential features for industrial settings, improving efficiency and operational reliability.

Product Information

Standard Information

• Brand: Dodge
• MPN: WS502X18TUFR

Technical Specifications

• Bolt Hole Spacing - Width: 8.625 inches
• Frame Length: 26.75 inches
• Flange Thickness: 3/16 inches
• Overall Height: 2.5 inches
• Base Width: 10.4375 inches
• Bolt Hole Spacing - Length: 12.25 inches
• Travel: 18 inches
• Weight: 31.95 lbs
• EAN or UPC: 782475583881
