Dodge WS502X15TUFR Side Mounted Take-Up Frame

Product Description

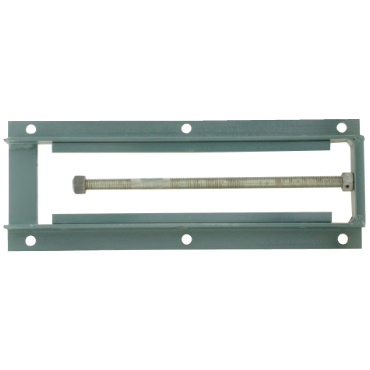

The Dodge WS502X15TUFR is a side-mounted take-up frame designed for use with belt and chain conveyors. This frame has a travel distance of fifteen inches and overall dimensions of twenty-three and three-fourths inches in length, ten and four-sixteenths inches in width, and two and one-half inches in height.

• Suitable for belt and chain conveyors
• Solid construction for durability
• Easy to install with standard bolt patterns

Product Highlights

This frame is ideal for applications requiring adjustable take-up distance, ensuring proper tension in conveyor systems.

Product Information

Standard Information

• Brand: Dodge
• MPN: WS502X15TUFR

Technical Specifications

• Base Width: 10 7/16 inches
• Travel: 15 inches
• Flange Thickness: 3/16 inches
• Bolt Hole Spacing - Length: 10 3/4 inches
• Overall Height: 2.5 inches
• Frame Length: 23 3/4 inches
• Bolt Hole Spacing - Width: 8.625 inches
• Weight: 28.62 lbs
• EAN or UPC: 782475418404
