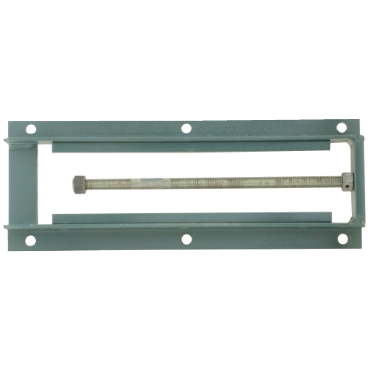

Dodge WS308X12TUFR Side Mounted Take-Up Frame

Product Description

The Dodge WS308X12TUFR is a side mounted take-up frame designed for use with belt and chain conveyors. It offers a travel of twelve inches for effective adjustment. This frame is ideal for various conveyor applications, ensuring components are properly aligned and tensioned.

• Travel: Twelve inches
• Dimensions: Fifteen and one-eighth inches long, seven and one-sixteenth inches wide, and one and three-fourth inches high
• Construction: Designed for durability and ease of installation

Product Highlights

This frame supports easy installation and maintenance within conveyor systems.

Product Information

Standard Information

• Brand: Dodge
• MPN: WS308X12TUFR

Technical Specifications

• Flange Thickness: 3/16 inches
• Overall Height: 1.75 inches
• Base Width: 7 1/16 inches
• Frame Length: 15 1/8 inches
• Bolt Hole Spacing - Width: 6.0625 inches
• Bolt Hole Spacing - Length: 7 23/32 inches
• Travel: 12 inches
• Weight: 11.45 pounds
• EAN or UPC: 782475418671
