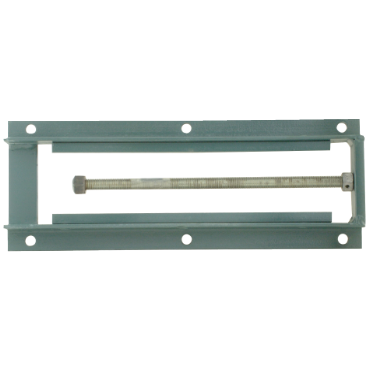

Dodge WS-400X9-TUFR Side Mounted Take-Up Frame - 9 in Travel (16 3/4 in Length, 8 13/16 in Width)

Product Description

The Dodge WS-400X9-TUFR is a Side Mounted Take-Up Frame designed for use with belt and chain conveyors. This frame is built to provide effective tensioning and alignment in various applications.

• Travel distance of nine inches
• Frame length of sixteen and three-fourth inches
• Base width of eight and thirteen-sixteenths inches

Product Highlights

This take-up frame is suitable for belt and chain conveyor systems, ensuring reliable operation in demanding environments.

Product Information

Standard Information

• Brand: Dodge
• Product SKU: 100943018

Technical Specifications

• Flange Thickness: 0.1875 in
• Overall Height: 2.25 in
• Frame Length: 16.75 in
• Travel: 9 in
• Base Width: 8.8125 in
• Bolt Hole Spacing - Width: 7.3125 in
• Bolt Hole Spacing - Length: 7.25 in
• Weight: 14.96 lb
• EAN or UPC: 782475583850
