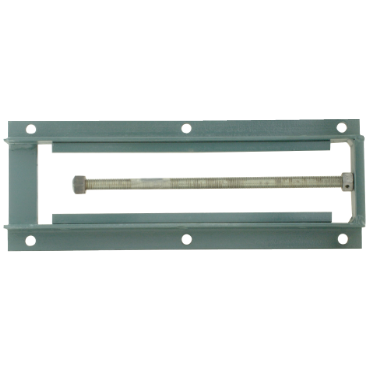

Dodge WS-400X6-TUFR Side Mounted Take-Up Frame

Product Description

The Dodge WS-400X6-TUFR is a side mounted take-up frame designed for various applications, including belt and chain conveyors. This frame offers a travel distance of six inches and is constructed for durability and reliability. It has key dimensions of thirteen and three-quarter inches in length, eight and thirteen-sixteenth inches in width, and an overall height of two and a quarter inches. It is suitable for various industrial settings where take-up frames are essential for alignment and tensioning.

• Side mounted design for versatile installation
• Durable construction for longevity
• Travel distance of six inches for optimal adjustment

Product Highlights

This frame is ideal for enhancing the operation of belt and chain conveyors.

Product Information

Standard Information

• Brand: Dodge
• MPN: WS-400X6-TUFR

Technical Specifications

• Travel: 6 inches
• Weight: 12.79 lbs
• Frame Length: 13.75 inches
• Base Width: 8.8125 inches
• Overall Height: 2.25 inches
• Flange Thickness: 0.1875 inches
• Bolt Hole Spacing - Width: 7.3125 inches
• Bolt Hole Spacing - Length: 11.5 inches
