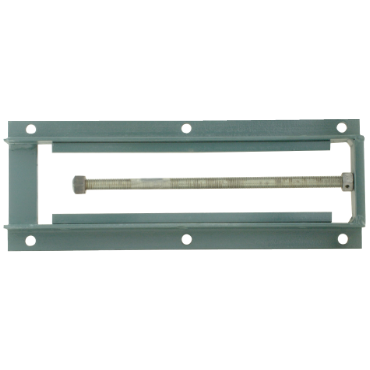

Dodge WS-400X12-TUFR Side Mounted Take-Up Frame

Product Description

The Dodge WS-400X12-TUFR is a side-mounted take-up frame suitable for various applications. It is designed mainly for use with belt and chain conveyors. This frame allows for effective maintenance and adjustment in conveyor systems. The travel distance measures twelve inches, providing ample flexibility in positioning. The overall dimensions are nineteen and three-quarters inches in length, eight and thirteen-sixteenths inches in width, and two and a quarter inches in height.

• Heavy-duty construction for reliability
• Compatible with belt and chain conveyors
• Simple installation process

Product Highlights

This take-up frame is vital for proper conveyor operation and maintenance.

Product Information

Standard Information

• Brand: Dodge
• MPN: WS-400X12-TUFR

Technical Specifications

• Travel: 12 inches
• Overall Height: 2.25 inches
• Bolt Hole Spacing - Width: 7.3125 inches
• Bolt Hole Spacing - Length: 8.75 inches
• Frame Length: 19.75 inches
• Flange Thickness: 0.1875 inches
• Base Width: 8.8125 inches
• Weight: 16.95 pounds
