Dodge WS-300X9-TUFR Side Mounted Take-Up Frame

Product Description

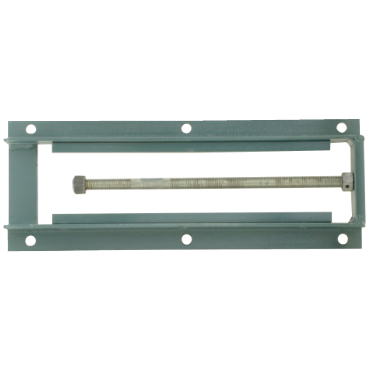

The Dodge WS-300X9-TUFR is a side mounted take-up frame designed to support belt and chain conveyors. This unit is built for easy installation and operation in various industrial settings.

• Travel measurement of nine inches
• Frame length measures fifteen inches
• Base width of six and nine-sixteenths inches

Product Highlights

This take-up frame offers durable construction suitable for industrial use, ensuring effective support for conveyor systems.

Product Information

Standard Information

• Brand: Dodge
• MPN: WS-300X9-TUFR

Technical Specifications

• Travel: 9 inches
• Weight: 8.59 pounds
• Base Width: 6 and 9/16 inches
• Frame Length: 15 inches
• Overall Height: 1.75 inches
• Flange Thickness: 3/16 inches
• Bolt Hole Spacing - Width: 5.5625 inches
• Bolt Hole Spacing - Length: 6 and 7/16 inches
