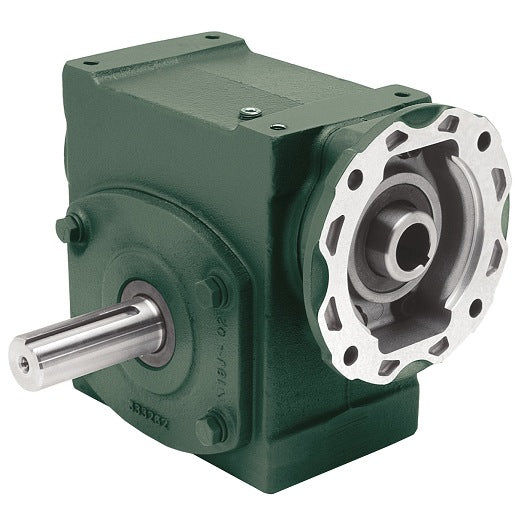

Dodge VD20Q07L56 TIGEAR-2 Right Angle Worm Gear Reducer

Product Description

The Dodge VD20Q07L56 is a TIGEAR-2 right angle worm gear reducer. This gearbox is designed to provide efficient power transmission in various applications. It features a left output style and a cast iron housing for durability. It is suitable for use in industrial settings where reliable gear reduction is required.

• 2 inch center distance
• 56C frame size
• Cast iron housing material

Product Highlights

This gear reducer is made with a focus on sturdiness and performance in demanding tasks.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 103203659

Technical Specifications

• Input Style: Quill
• Output Shaft Diameter: 1 inch
• Overhung Load: 1560 lbf
• Lubrication: PAG, Standard Temperature
• Seal Type: Single-Lip Contact
• Housing Material: Cast Iron
• Output Style: Left
• Center Distance: 2 inches
• Nominal Ratio: 7
• Frame Size: 56C
• Horsepower Output: 2.54 hp
• Component Type: Gearbox
• Weight: 32.0 lb
• EAN or UPC: 782475961269
