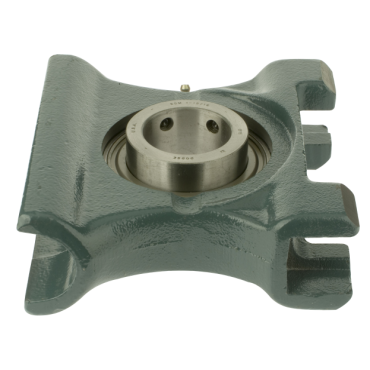

Dodge TPGM215 Top Angle Take-Up Unit

Product Description

The Dodge TPGM215 is a Top Angle Take-Up Unit designed for belt and chain conveyor applications. This unit features a ball bearing type and uses a setscrew locking collar to secure the shaft. The housing is made of cast iron, providing durability and strength in various operating environments.

• 2 15/16 inches shaft diameter
• Contact seals to protect against contamination
• Weight of approximately 27.98 pounds

Product Highlights

The take-up unit is suitable for a range of industrial applications, providing reliable performance for conveyor systems.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100939382

Technical Specifications

• Locking Device: Setscrew Locking Collar
• Housing Material: Cast Iron
• Take-Up Frame No.: TP50
• Seal Type: Contact Seals
• Length Through Bore: 2.219 inches
• Shaft Diameter: 2.9375 inches
• Type: Ball Bearing
• Weight: 27.98 pounds
