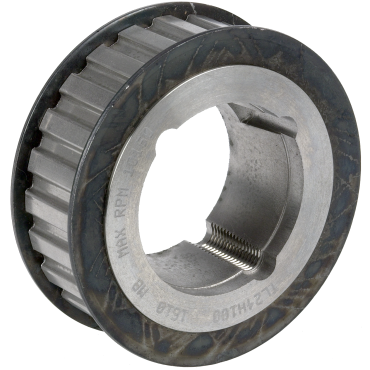

Dodge TL32H1002517 H Series, 1/2 Pitch Taperlock Bushed Dyna-Sync Pulley

Product Description

The Dodge TL32H1002517 is part of the H Series, offering a 1/2 pitch taperlock bushed Dyna-Sync pulley. This pulley is designed for reliable performance in various timing applications.

• Minimum backlash for smooth operation
• Nonslip design with no lubrication needed
• Constant speed capabilities

Product Highlights

Ideal for use in mechanical systems that require precise timing and minimal maintenance.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100738420

Technical Specifications

• Hub Projection: 0.44 inches
• Bushing Type: Taperlock
• Length Through Bore: 1.75 inches
• Type: CF-1
• Bore Range [Max]: 2.5 inches
• Bore Type: Taper-Lock and QD Bushed
• Pitch Diameter: 5.093 inches
• Outside Diameter: 5.039 inches
• Bushing Series: 2517
• Belt Pitch: 0.5 inches
• Bore Range [Min]: 0.5 inches
• Hub Diameter: 4.44 inches
• Belt Size: H
• Belt Width: 1 inch
• Number of Teeth: 32
• Weight: 4.61 pounds
• EAN or UPC: 782475088416
