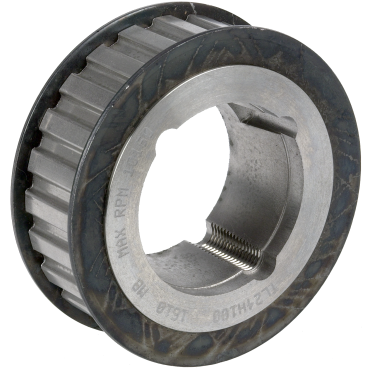

Dodge TL20H1501210 | H Series, 1/2 Pitch Taperlock Bushed Dyna-Sync Pulley

Product Description

The Dodge TL20H1501210 is an H Series, 1/2 pitch taperlock bushed Dyna-Sync pulley. This pulley is suitable for various applications requiring reliable performance and durability. With a design that minimizes slip and lowers maintenance needs, this pulley is ideal for consistent operation in demanding environments.

• Compatible with 1/2 pitch belts
• 21 teeth for efficient power transfer
• Requires 1210 bushing for installation

Product Highlights

This pulley offers minimal backlash and operates without lubrication. Designed for constant speed, it is particularly useful in settings where precision is critical.

Product Information

Standard Information

• Brand: Dodge
• Part Number: TL20H1501210

Technical Specifications

• Pitch Diameter: 3.183 in
• No. of Teeth: 20
• Belt Pitch: 0.5 in
• Bore Type: Taper-Lock and QD Bushed
• Bore Range [Min]: 0.5 in
• Bore Range [Max]: 1.25 in
• Length Through Bore: 1 in
• Weight: 2.2 LB
• Bushing Series: 1210
• Outside Diameter: 3.129 in
• Belt Size: H
• Belt Width: 1.5 in
• EAN or UPC: 782475576067
