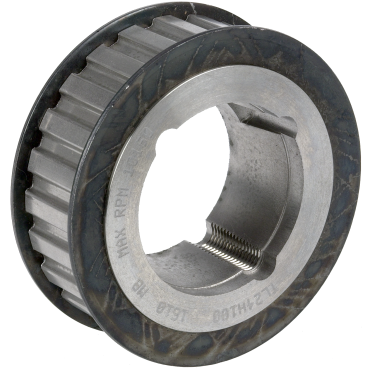

Dodge TL18L075 1108 | L Series, 3/8 Pitch Taperlock Bushed Dyna-Sync Pulley

Product Description

The Dodge TL18L075 1108 is a 3/8 Pitch Taperlock Bushed Dyna-Sync Pulley. This product allows for efficient power transmission with a reliable design. The pulley features:

• Nonslip operation
• Requires no lubrication
• Minimum backlash for constant speed

Product Highlights

The use of a flanged pulley is necessary to prevent the belt from riding off. It is designed for drives with a center distance greater than eight times the diameter of the smaller pulley on ratios less than 3:1.

Product Information

Standard Information

• Brand: Dodge
• Part Number: TL18L075 1108

Technical Specifications

• Bushing Series: 1108
• Belt Size: L
• No. of Teeth: 18
• Bore Type: Taper-Lock and QD Bushed
• Outside Diameter: 2.119 inches
• Belt Width: 0.75 inches
• Pitch Diameter: 2.149 inches
• Bushing Type: Taperlock
• Length Through Bore: 0.88 inches
• Hub Projection: 0.06 inches
• Bore Range [Min]: 0.5 inches
• Bore Range [Max]: 1.125 inches
• Belt Pitch: 0.375 inches
• Weight: 0.45 lbs
• EAN or UPC: 782475576975
