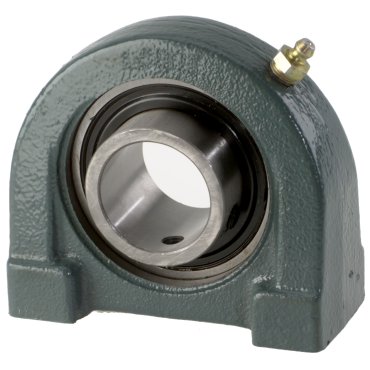

Dodge TBSXV100 Pillow Block Ball Bearing Unit - Tapped Base, 1 in Bore, Cast Iron Material, Non-Expansion Bearing (Fixed)

Product Description

The Dodge TBSXV100 is a pillow block ball bearing unit designed for durability and reliability. It features a tapped base for easy mounting. This unit is suitable for shafts with a bore diameter of one inch. Constructed from cast iron, the TBSXV100 is engineered for fixed positioning, making it useful in various applications.

• Tapped base for easy installation
• Ball bearing type for smooth operation
• Designed for one inch bore diameter

Product Highlights

This pillow block bearing is ideal for applications requiring a sturdy foundation and minimal displacement under load.

Product Information

Standard Information

• Brand: Dodge
• Country of Origin: United States

Technical Specifications

• MPN: TBSXV100
• Bore Diameter: 1 in
• Maximum Speed: 4500 rpm
• Radial Dynamic Load Capacity: 3146 lbf
• Radial Static Load Capacity: 1769 lbf
• Housing Material: Cast Iron
• Insert Material: Steel
• Sealing Type: Single-Lip Contact
• Locking Device: Eccentric Collar
• Expansion Type: Non-Expansion Bearing (Fixed)
• Housing Type: Tapped-Base Pillow Block
• Relubricatable: Yes
