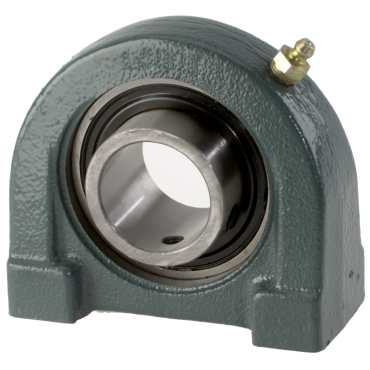

Dodge TBSC015 Pillow Block Ball Bearing Unit - Tapped Base 15/16 in Bore

Product Description

The Dodge TBSC015 is a pillow block ball bearing unit designed for stability and performance. It features a tapped base for easy mounting and is suitable for various industrial applications. The bore diameter is fifteen-sixteenths inch, making it ideal for different shaft sizes.

• Maximum speed of four thousand five hundred rpm
• Single-lip contact sealing for effective lubrication
• Heavy-duty cast iron housing for durability

Product Highlights

This unit is ideal for mechanical systems requiring robust support and smooth operation.

Product Information

Standard Information

• Brand: Dodge
• Country of Origin: United States

Technical Specifications

• MPN: TBSC015
• Bore Diameter: 15/16 inch
• Bore Length: 1.34 inches
• Maximum Speed: 4500 rpm
• Housing Material: Cast Iron
• Sealing Type: Single-Lip Contact
• Locking Device: Set Screw
• Load Capacity: Radial Static Load 1769 lbf, Radial Dynamic Load 3146 lbf
• Insert Material: Steel
• Mounting Type: Tapped Base
• Housing Type: Tapped-Base Pillow Block
• Relubricatable: Yes
• Expansion Type: Non-Expansion Bearing (Fixed)
• Shaft Attachment: Setscrew
• Base To Bore Centerline: 1.44 inches
