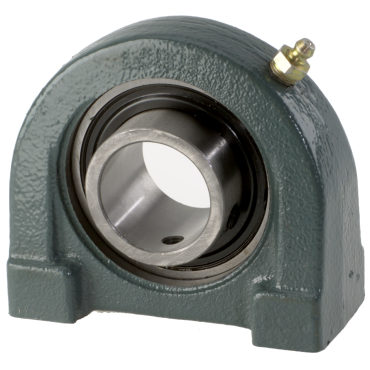

Dodge TBSC014 Pillow Block Ball Bearing Unit - Tapped Base, 7/8 in Bore, Cast Iron Material, Non-Expansion Bearing (Fixed)

Product Description

The Dodge TBSC014 is a reliable pillow block ball bearing unit designed for industrial applications. It features a tapped base and a bore diameter of seven eighths inches. Made from durable cast iron material, this non-expansion bearing provides durability and strength in various settings.

• Constructed from cast iron for durability.
• Has a maximum speed of four thousand five hundred rpm.
• Features a single-lip contact sealing type.

Product Highlights

This pillow block bearing unit is suitable for fixed applications and comes with a set screw for secure shaft attachment.

Product Information

Standard Information

• Manufacturer: Dodge
• Country of Origin: United States

Technical Specifications

• Bore Diameter: 7/8 in
• Bore Length: 1.34 in
• Maximum Speed: 4500 rpm
• Radial Dynamic Load Capacity: 3146 lbf
• Radial Static Load Capacity: 1769 lbf
• Housing Material: Cast Iron
• Type of Bearing: Ball Bearing
• Expansion Type: Non-Expansion Bearing (Fixed)
• Sealing Type: Single-Lip Contact
• Locking Device: Set Screw
• Relubricatable: Yes
• Housing Type: Tapped-Base Pillow Block
• Insert Material: Steel
• Shaft Attachment: Setscrew
• Base to Bore Centerline: 1.4400 in
