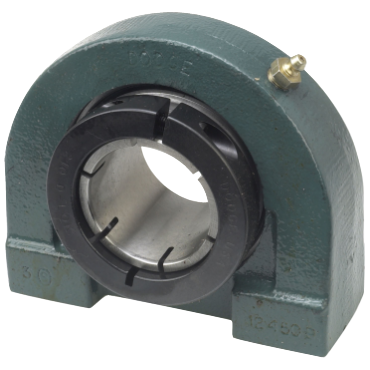

Dodge TBDL112 Pillow Block Ball Bearing Unit - Tapped Base, 1-3/4 in Bore, Cast Iron Material, Non-Expansion Bearing (Fixed)

Product Description

The Dodge TBDL112 is a pillow block ball bearing unit that features a tapped base and is designed to fit a bore of one and three-fourth inches. Constructed from durable cast iron, this unit serves as a non-expansion bearing, providing reliable support and stability in various applications.

• Compatible with high-speed operations up to five thousand revolutions per minute.
• Grease lubrication ensures smooth operation and longevity.
• Ideal for fixed installation without the need for expansion.

Product Highlights

The Dodge TBDL112 is suitable for a variety of industrial applications, offering robust performance and easy installation.

Product Information

Standard Information

• Brand: Dodge
• MPN: TBDL112

Technical Specifications

• Bore Diameter: 1-3/4 in
• Bore Length: 2.01 in
• Lubrication Type: Grease
• Maximum Speed: 5000 rpm
• Base To Bore Centerline: 2.1250 in
• Radial Dynamic Load Capacity: 7891 lbf
• Radial Static Load Capacity: 4906 lbf
• Housing Material: Cast Iron
• Insert Material: Steel
• Mounting Type: Tapped Base
• Expansion Type: Non-Expansion Bearing (Fixed)
• Locking Device: Clamp Collar
• Sealing Type: Single-Lip Contact
• Sensor Ready: Adapter Required
• Relubricatable: Yes
• Country of Origin: US
