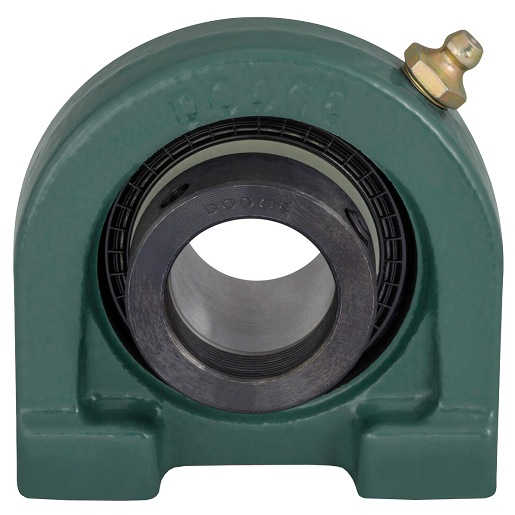

Dodge TB-SXR-203 Cast Iron Housing Ball Bearing Pillow Block

Product Description

The Dodge TB-SXR-203 is a cast iron housing ball bearing pillow block unit designed for reliable performance. This unit is designed with a solid construction and features a steel insert, making it suitable for various applications.

• Made from durable cast iron housing material
• Equipped with steel insert for improved strength
• Maintains fixed expansion capability

Product Highlights

The TB-SXR-203 is ideal for industrial applications where sturdy support and stability are essential. It operates smoothly at a maximum speed of two thousand five hundred revolutions per minute.

Product Information

Standard Information

• Brand: Dodge
• Part Number: TB-SXR-203

Technical Specifications

• Bearing Type: Ball Bearing
• Dynamic Load Capacity: 9755 lbf
• Static Load Capacity: 6588 lbf
• Bore Diameter: 2-3/16 in
• Bolt Diameter: 0.625 in
• Base to Center Height: 2.25 in
• Bore Length: 2.59 in
• Grease Name: Unirex N2
• Lubrication Method: Grease
• Weight: 7.0 LB
